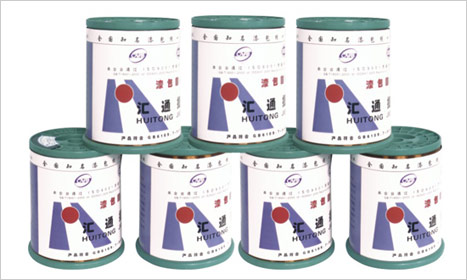

Enamel-insulated Wire Products  > Enamel-insulated Wire
 Product features for Polyesterimide Enameled Round Copper Winding Of Class 180
Specification(mm)
Item
0.080 0.090 0.100 0.112 0.125 0.140 0.160 0.180 0.200 0.224 0.250 0.280 0.315 0.355 0.400 0.450 0.500 0.560 0.630 0.710 0.800 0.900 1.000 1.120 1.250 1.400 1.600 1.800 2.000 2.240 2.500
Winding around round bar(D) After it is wired on a stipulated testing bar(d-conductor diameter),the paint film shall not break down.
Drawing   The paint film shall not crack after it is extended over 32%.
Emergent bursting After emergent breakdown,the paint film shall not crack or lost its adhesion.
Stripping&wiring(=rpm)   99 88 79 69 62 55 50 44
Thermal breakdown(=D) 3 4 2 3 Extending 25%
Softening breakdown It shall not be broken diwn within 2mm under 300o
Paint scrapping(N) Level 1 Average   2.85 3.10 3.35 3.60 3.85 4.15 4.45 4.75 5.10 5.45 5.85 6.30 6.75 7.35 7.90 8.50 9.20 9.95 10.6 11.7 12.8
Min   2.45 2.60 2.80 3.05 3.25 3.50 3.75 4.05 4.35 4.65 4.95 5.35 5.75 6.20 6.70 7.20 7.80 8.40 9.00 9.90 10.8
Level 2 Average   4.70 5.05 5.45 5.85 6.25 6.75 7.20 7.70 8.25 8.85 9.50 10.2 10.9 11.6 12.5 13.3 14.3 15.4 16.4 17.5 18.6
Min   4.00 4.30 4.60 4.95 5.30 5.75 6.10 6.50 7.00 7.50 8.05 8.60 9.20 9.80 10.5 11.3 12.1 13.0 13.9 14.8 15.8
High temperature voltage(V) Level 1   1000 1100 1200 1300 1300 1400 1400 1600 1700 1700 1700 1700 1700 1800 1900 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000
Level 2   2000 2100 2300 2400 2500 2600 2800 2900 3000 3100 3200 3300 3300 3500 3500 3600 3600 3700 3800 3800 3800 3800 3800 3800 3800 3800 3800 3800
Thermal resistance(o) 180
Anti-freezing Agent(%) 1.5          1.0 1.0     0.8 0.8         0.6
